Introduction
The HM10 chemical magnetic pump adopts a sealless magnetic coupling drive structure to eliminate medium leakage entirely, engineered specifically for the conveyance of corrosive chemical liquids in the chemical industry. Its suction and discharge ports support multiple connection options including hose end, G1 thread and union end; custom port configurations complying with DIN, JIS and ANSI international piping standards are available upon request. Compatible with both 50Hz and 60Hz power frequencies, it delivers a rated flow rate of 20L/min with a rated head of 2.6m under 50Hz operation and a maximum head of 3.8m at 60Hz, driven by a 0.065kW motor and capable of handling chemical media with a specific gravity up to 1.3.
As a corrosion resistant magnetic pump for chemicals, HM10 features wetted parts configurable in a wide range of anti-corrosion materials such as E-TFE, EPDM, VITON and SSIC. Boasting a compact footprint and easy maintenance, this pump is widely deployed for chemical circulation, dosing and liquid transfer across fine chemical, electroplating, environmental wastewater treatment and pharmaceutical sectors, serving as an ideal leak-free alternative to conventional shaft-sealed pumps for chemical processing applications.

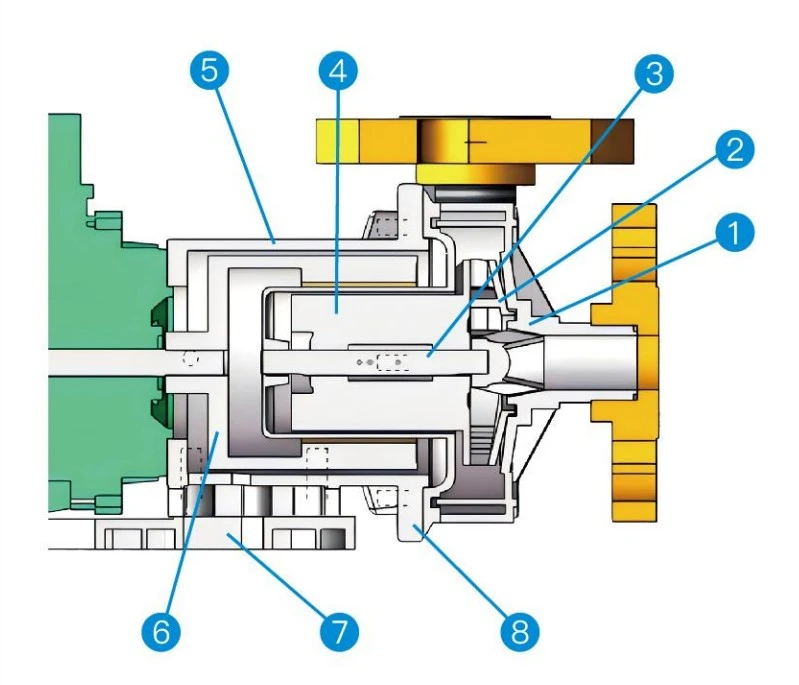

Product Structural Schematic
|
Part code |
Name |
Part code |
Name |
|
1 |
Pump casing |
2 |
Impeller |
|
3 |
Shaft |
4 |
Inner magnetic group |
|
5 |
Rear casing assembly |
6 |
Externalmagnetic group |
|
7 |
Base |
7 |
Bracket |
Technical Parameter
|
Model |
Suction*Dischairge (mm) |
Frequency |
Rated Capacity |
Rated Head (m) |
Motor Output (Kw) |
S.G. |
||
|
Hose |
Thread |
Union |
||||||
|
HM10 |
20 |
G1 |
15 |
50Hz |
20 |
2.6 |
0.065 |
1.3 |
|
60Hz |
3.8 |
|||||||
Performance Curve
Key Advantages
1. Sealless Magnetic Drive Construction
The sealless magnetic pump for chemical industry features a full shaft-seal-free design that fundamentally stops leakage of corrosive chemical fluids. It fulfills the hermetic transfer requirement for hazardous chemicals, preventing raw material wastage and workshop corrosion & contamination caused by dripping or spillage.
2. Flexible Multi-port Connection Options
Suction and discharge ports come with three standard connections: hose end, G1 thread and union end. Custom ports compliant with DIN/JIS/ANSI international piping standards are available to suit on-site piping installation across various countries.
3. Wide Compatibility for Diverse Process Media
Wetted parts can be constructed from various anti-corrosion materials including E-TFE, EPDM, VITON and SSIC. It handles corrosive fluids such as strong acids, alkalis and organic solvents with specific gravity up to 1.3, catering to working conditions in fine chemicals, electroplating, pharmaceutical production and wastewater treatment industries.
4. Dual-Frequency Universal Motor
The HM10 chemical magnetic pump works seamlessly with both 50Hz and 60Hz power supplies. It generates 2.6m head at 50Hz and 3.8m head at 60Hz. Equipped with a low-power 0.065kW motor, it cuts energy consumption for small-scale liquid circulation and chemical dosing applications.
5. Compact Modular Design
Key pump components (pump casing, impeller, inner & outer magnetic assemblies) adopt modular structure for easy disassembly, inspection and maintenance. Its compact dimension allows built-in installation beside small reactors and auxiliary equipment to lower long-term service costs.
Typical Applications
● Fine Chemical Batching & Transfer
Featuring a sealless zero-leakage design, the HM10 industrial magnetic pump eliminates wastage from acid & alkali chemical fluid seepage, ideal for precise low-flow dosing and transfer of chemical reagents.
● Electroplating Bath Liquid Circulation
Available with assorted port connections to match varied piping layouts, its corrosion-resistant wetted materials withstand plating solution erosion to deliver steady continuous circulation for electroplating tank fluids.
● Pharmaceutical & Lab Chemical Dosing
Compact modular construction minimizes installation footprint, while dual-frequency motor supports global power specifications to accommodate hermetic dosing of trace amounts of chemical liquids.
Dimension(mm)
|
Model |
A |
B |
B1 |
E |
G |
H |
H1 |
H2 |
L* |
L1 |
L2 |
L3 |
|
HM10 |
47.5 |
121 |
100 |
30 |
134 |
130 |
70 |
60 |
240 |
63 |
10 |
40 |
FAQ
Q: Will leakage occur during transportation and cause equipment corrosion?
A: The HM10 sealless chemical magnetic pump adopts a magnetic coupling structure with no mechanical seal contact throughout operation. We also recommend suitable wetted materials according to the actual conveyed media, fundamentally eliminating liquid leakage and corrosive fluid loss, and protecting equipment and the production environment from corrosion.
Q: Concerns about poor adaptability to limited laboratory installation space.
A: Featuring a compact modular structure, the HM10 has a tiny footprint and supports built-in installation, making it perfectly suitable for installation with small laboratory reactors and micro processing equipment.
Q: Where to buy the HM10 chemical magnetic pump?
A: You may contact our sales team via the email juicy@sxhono.com.cn to obtain product specifications, quotations and selection recommendations. If you have special application requirements, we can also provide you with customized fluid transfer solutions.
