Introduction
The HNWG600S industrial peristaltic pump is equipped with a high-torque brushless DC motor featuring maintenance-free operation and powerful output. It comes with standard practical functions including start/stop, forward/reverse rotation, full-speed quick flush cleaning, stepless speed regulation and power-off parameter memory, and allows two pump heads to be cascaded for expanded multi-channel delivery. As a peristaltic pump for corrosive liquids, the HNWG600S is fitted with an RS485 communication interface supporting the Modbus protocol for seamless connection with automated equipment such as PLCs, HMIs and host computers. It is widely applied for high-flow conveying and quantitative batching of corrosive chemicals and industrial raw materials.
Technical Parameter
|
Parameter |
HNWG600S |
|
Flow range |
0.4 ~ 13.2L/min |
|
Speed range |
30 ~ 600rpm |
|
Speed resolution |
1rpm |
|
Speed accuracy |
< ±3% |
|
External control |
External control input level 5V, 12V(Standard), 24V (Optional); External control analog 0-5V(Standard), 0-10V, 4-20mA (Optional) |
|
Communication interface |
RS485 communication interface, MODBUS protocol is available, DB15 external control interface |
|
Power supply |
AC100 ~ 240V, 50Hz/60Hz |
|
Wattage |
< 300W |
|
Working environment |
Temperature 0 ~ 40℃, relative humidity < 80% |
|
IP grade |
IP31 |
|
Dimension (L×W×H) |
356×232×224mm |
|
Driver weight |
11 kg |
Key Advantages
1. The HNWG600S industrial peristaltic pump uses an encoder knob to adjust speed, start/stop, rotation direction and full-speed operation. Equipped with the LF-LED-OS system, its digital screen intuitively displays rotating speed and operating status. A built-in timing function enables timed and quantitative dispensing for easy filling operations.
2. As a peristaltic pump for corrosive liquids, the HNWG600S is driven by a high-torque brushless motor with ample power and maintenance-free performance. Its 304 stainless steel casing resists organic solvent corrosion and allows easy wipe-down cleaning, ideal for corrosive liquid applications in chemical and pharmaceutical industries.
3. The circuit board is coated with conformal coating for outstanding dustproof and moistureproof properties, enabling stable operation in dusty, humid harsh workshop environments and minimizing electronic failure risks.
4. Fitted with an optically isolated external control interface that supports optional 5V/12V/24V digital signals for remote start-stop and direction switching, as well as external analog speed regulation. It can seamlessly connect with industrial controllers for convenient integration into automated production lines.
Typical Applications
● TFF/DFF Ultrafiltration
The HNWG600S industrial peristaltic pump delivers stable, pulse-free flow. Its low-shear design preserves biological activity and molecular structure, providing steady, consistent feed for ultrafiltration systems. Precise and constant flow ensures efficient, stable membrane separation, while only the hose contacts the medium to eliminate cross-contamination.
● Fluidized Beds
High-torque output reliably meets continuous fluid feeding demands for fluidized beds and supports long-hour non-stop operation. Accurate spray flow regulation ensures uniform coating and binder delivery. Paired with full-speed cleaning and power-off memory, the pump is ideal for continuous fluidized bed production.
● Additives
For high-viscosity, micro-particle industrial additives, the peristaltic pump for corrosive liquids uses hose-squeezing conveyance that resists clogging and pump wear. Stepless speed adjustment flexibly matches various additive ratios, and corrosion-resistant hoses are available for acid and alkali resistance.
● Tubular Centrifuges
The pump provides stable, quantitative delivery of material to be separated, with uniform and controllable flow rates that match centrifuge feeding requirements for reliable separation. It supports forward/reverse rotation and online speed regulation, with soft start/stop to eliminate fluid impact, suitable for continuous and cyclic centrifuge feeding.
● Material Transfer in Pharmaceutical Factories
Low-shear conveyance protects the activity of pharmaceutical solutions, intermediates and raw materials to meet hygienic conveying standards. Dual pump heads can be cascaded for synchronized multi-channel delivery. RS485 Modbus compatibility enables precise linked control in automated pharmaceutical production lines.

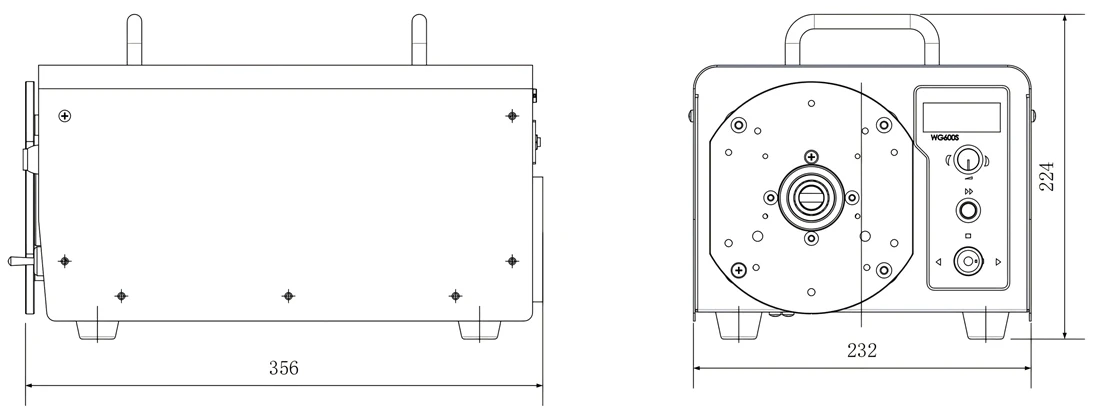

Dimension(mm)
Applicable Pump Head and Tube
FAQ
Q: Will acid and alkaline fluids corrode the pump body, resulting in leakage and shortened service life?
A: No. This peristaltic pump for corrosive liquids is equipped with special anti-corrosion hoses and a 304 stainless steel housing to resist acid and alkali, extending service life and lowering maintenance costs.
Q: Can the equipment realize synchronous multi-channel liquid feeding?
A: The HNWG600S industrial peristaltic pump allows two cascaded pump heads for synchronous operation via RS485 linkage control, and can be connected to a system for synchronized delivery per actual flow requirements.
Q: Where to buy the HNWG600S Industrial Peristaltic Pump?
A: You may contact our sales team via the email juicy@sxhono.com.cn to obtain product specifications, quotations and selection recommendations. If you have special application requirements, we can also provide you with customized fluid transfer solutions.
