Introduction

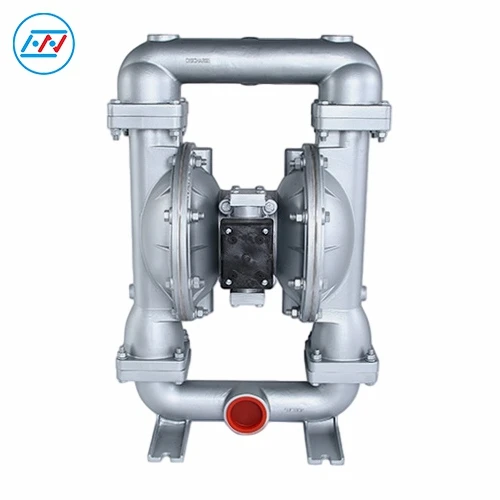

The HNDP40 1-1/2-inch sewage air diaphragm pump delivers outstanding comprehensive performance with a maximum flow rate of 90 GPM (340.7 LPM), featuring sufficient flux and stable operation. Built with a robust and compact structure, it supports mobile installation for flexible and portable operation, greatly improving on-site adaptability and mobility. It allows customized configurations of various wetted materials and port sizes to suit different medium characteristics, such as impurities in industrial wastewater, corrosive fluids and viscous resin materials, offering excellent versatility.
As a dedicated diaphragm pump for industrial wastewater systems, it withstands long-term conveyance of impurity-containing wastewater and slightly corrosive waste liquid with high working condition tolerance. Adopting a pure pneumatic safety design with no electrical hazards, it is suitable for regular fixed wastewater treatment operations in factories, as well as temporary and mobile field applications.
Performance Curve
Product Description
|
Ratio |
1:1 |
|
Maximum Flow Rate |
90 g.p.m. (340.7 l.p.m.) |
|
Displacement per Cycle |
0.64 gal (2.42 L) |
|
Air Inlet (Female Thread) |
1/2 - 14 N.P.T. |
|
Liquid Inlet/Outlet |
1-1/2" - 11-1/2 N.P.T.F.-1, Rp1-1/2 (1-1/2-11 BSP Parallel) |
|
Maximum Operating Pressure |
120 psi (8.3 bar) |
|
Maximum Suspended Solids Passage |
1/4" (6.4 mm) |
|
Weight lbs (kg) |
AL: 51.5 (23.4) CI: 79.5 (36.1) |
|
Maximum Dry Lift |
19 ft (5.8 m) |
|
Noise Level |
80.5 db(A) at 70 PSI, 60 Cycles per Minute |
Advantages and Features
1. As a dedicated diaphragm pump for industrial wastewater systems, the HNDP40 achieves long-term and stable delivery of solid-containing wastewater, sedimentary sewage and slightly corrosive waste liquid. It balances high-flow conveying capacity and precise process requirements, adapts to high-volume continuous production, and effectively improves overall pumping efficiency.
2. The HNDP40 1.5-inch sewage air diaphragm pump adopts a sturdy and compact aluminum alloy and cast iron structure. Featuring light weight, high structural stability and easy installation, it supports matching with mobile trolleys and mobile equipment. It satisfies both fixed pipeline operation and mobile emergency operation with extremely high on-site flexibility and adaptability.
Complete System Installation Schematic
1. Air Source Treatment Unit
Filter Regulator ②: Filters impurities and moisture in compressed air first, then regulates and stabilizes the air pressure supplied to the pump.
Dryer ③: Further removes moisture from compressed air to prevent water vapor from entering the pump chamber and causing internal component corrosion and icing.
Lubricator ④: Atomizes lubricating oil and mixes it into compressed air to lubricate moving parts such as pneumatic valves and diaphragms of the pump and reduce wear.
Supporting components: Air Inlet, Check Valve, Shut-Off Valve.
2. Pump Body and Exhaust System
Pump Body: The core pneumatic diaphragm pump, which drives the diaphragm to move back and forth via compressed air to realize fluid suction and discharge.
Muffler: Installed at the pump exhaust port to reduce exhaust noise.
Piped Exhaust: Discharges waste gas to a safe area to avoid workshop environmental pollution.
Flexible Connection: A flexible connection between the pump and the air source treatment unit to buffer vibration and reduce stress transmission.
3. Fluid Suction Pipeline (Left Side of the Figure)
Suction: The starting point for fluid entering the system, connected to upstream liquid storage tanks or pipelines.
Shut-Off Valve: Cuts off fluid suction for convenient pump maintenance.
Compound Gauge: Monitors suction-side pressure to identify issues such as insufficient suction lift and pipeline blockage.
Flexible Connector: Absorbs pump vibration and prevents stress damage caused by rigid pipeline connection.
Drain Port: Drains residual liquid in the suction pipeline for maintenance or pipeline emptying.
Pipe Connection: Multiple connection types are optional to adapt to on-site pipeline conditions.
4. Fluid Discharge Pipeline (Right Side of the Figure)
Flexible Connector: Buffers pump vibration to protect pipelines and equipment.
Pipe Connection: Consistent with the suction end, adaptable to on-site pipelines.
Drain Port: Drains residual liquid in the discharge pipeline for maintenance and emptying.
Surge Suppressor ①: Stabilizes the pulsating discharge pressure of pneumatic diaphragm pumps and protects pipelines and downstream equipment, serving as a key accessory on the discharge side.
Pressure Gauge: Monitors discharge-side pressure to judge the operating status of the pump.
Shut-Off Valve: Cuts off fluid discharge to facilitate maintenance of the pump and downstream equipment.
Discharge: The terminal outlet of the system, connected to downstream pipelines and equipment.
Unregulated Air Supply to Surge Suppressor: Directly supplies unregulated compressed air to the surge suppressor, utilizing the compressibility of gas to absorb fluid pulsation.
Applications
● Industrial Wastewater Treatment Field
As a dedicated diaphragm pump for industrial wastewater systems, the HNDP40 is specially adapted for complex conveying scenarios such as impurity-containing sewage, sedimentary wastewater and slightly corrosive waste liquid. It features strong adaptability to harsh working conditions including fluctuating wastewater concentration, mixed impurities and unstable water quality. With a high flow capacity of 340.7LPM, it efficiently handles high-volume operations such as factory sewage discharge, waste liquid transfer and wastewater circulation, while meeting precise water delivery requirements and greatly improving overall wastewater treatment efficiency.
● Resin and Chemical Fluid Transfer Field
The HNDP40 pneumatic diaphragm pump stably conveys medium and low-viscosity chemical media including resin, paint, chemical oil and viscous additives. It delivers pulse-free uniform discharge and stable pressure to support precise processes such as material transfer, pipeline circulation, quantitative batching and filling. Adopting a pure pneumatic explosion-proof design with no electrical hazards, it safely adapts to flammable, explosive and volatile chemical working conditions. It supports modular customization of wetted materials to match different medium viscosity and corrosiveness, providing excellent versatility.
● Mining, Oil and Gas General Industrial Field
Constructed with a compact and lightweight aluminum alloy and cast iron structure, the HNDP40 diaphragm pump is sturdy, durable and easy to disassemble and install, making it suitable for dusty and humid harsh environments in mining, oil and gas industries. It reliably transports mining waste liquid, mineral processing agents, oil and gas fluids and industrial cleaning liquids. It supports regular fixed pipeline conveying in factories and mining areas, and can be equipped with mobile devices for flexible on-site operations such as temporary water extraction, emergency waste liquid transfer and field material delivery, achieving multi-scenario applicability and high practicability.
FAQ
Q: Concerns about unstable placement during outdoor temporary operations and emergency water extraction, resulting in poor adaptability to temporary working requirements.
A: Featuring a lightweight and compact structure, the HNDP40 sewage air diaphragm pump is easy to install and can be equipped with a mobile trolley for flexible mobile operation. It quickly switches between fixed operation and temporary emergency operation modes without complicated disassembly, assembly or commissioning, efficiently adapting to various mobile working conditions.
Q: Industrial wastewater contains sediment and suspended impurities, which easily cause pump cavity deposition and pipeline blockage during long-term operation, leading to reduced flow rate, conveying interruption and delayed wastewater treatment progress.
A: As a professional diaphragm pump for industrial wastewater systems, the HNDP40 is specially optimized for impurity-containing wastewater conditions. It adopts a smooth flow passage with high impurity passing capacity to avoid material accumulation and deposition. With sufficient pumping power, it stably conveys solid-laden sewage, effectively preventing clogging and flow attenuation and ensuring continuous operation of the wastewater treatment system.
Q: Where to buy the HNDP40 sewage air diaphragm pump?
A: You may contact our sales team via the email juicy@sxhono.com.cn to obtain product specifications, quotations and selection recommendations. If you have special application requirements, we can also provide you with customized fluid transfer solutions.
